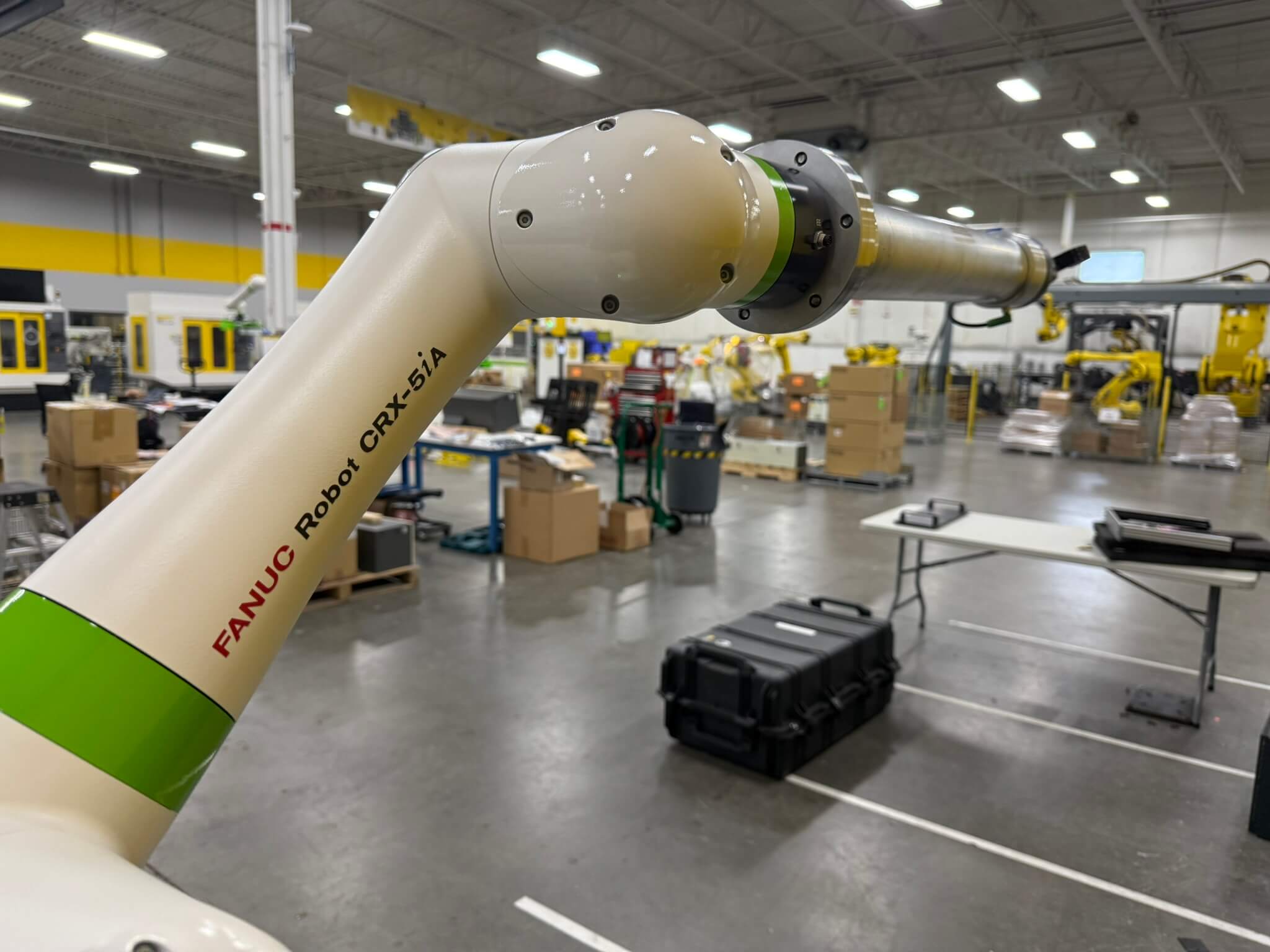

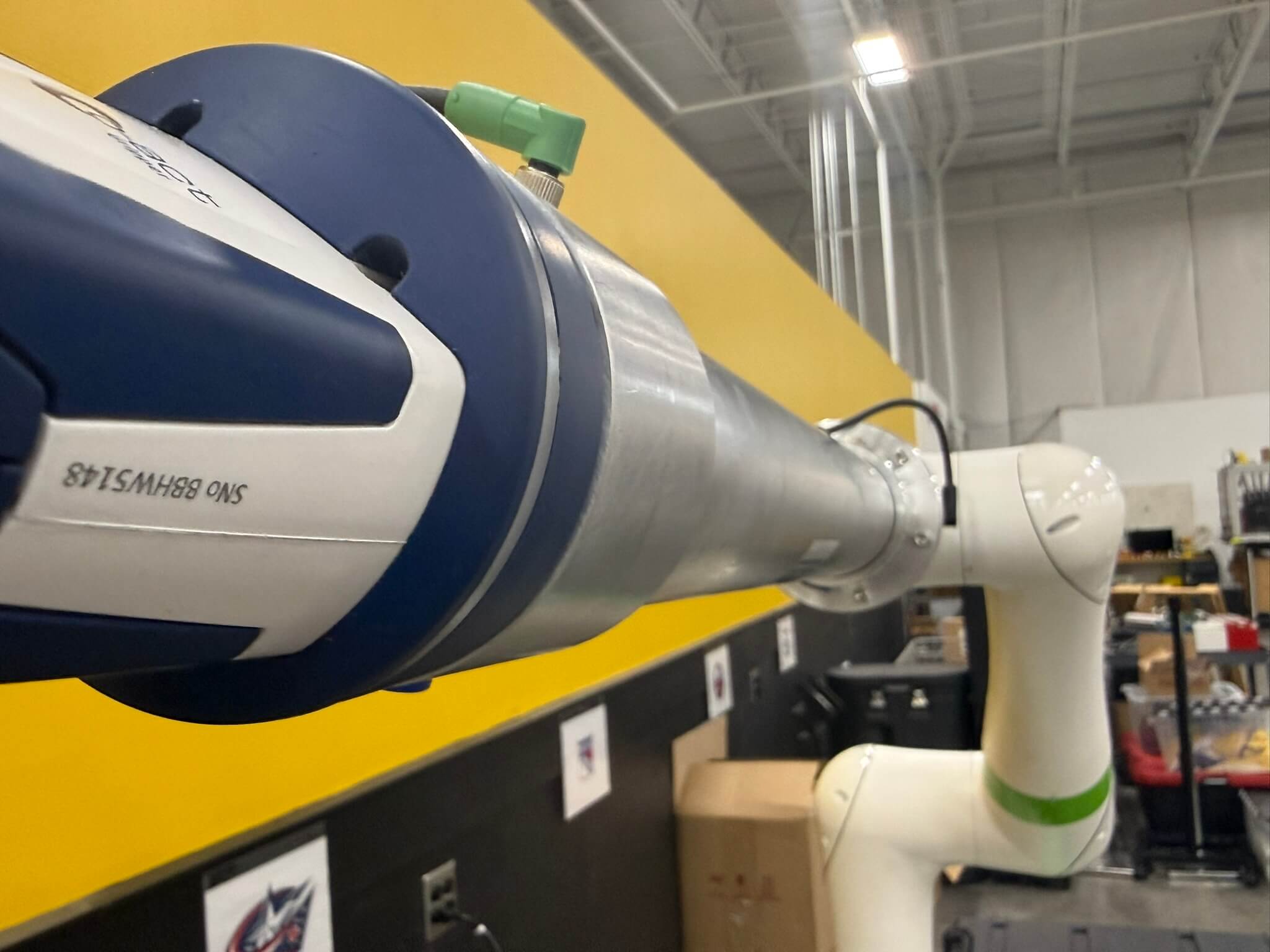

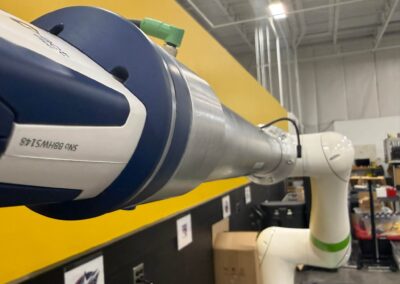

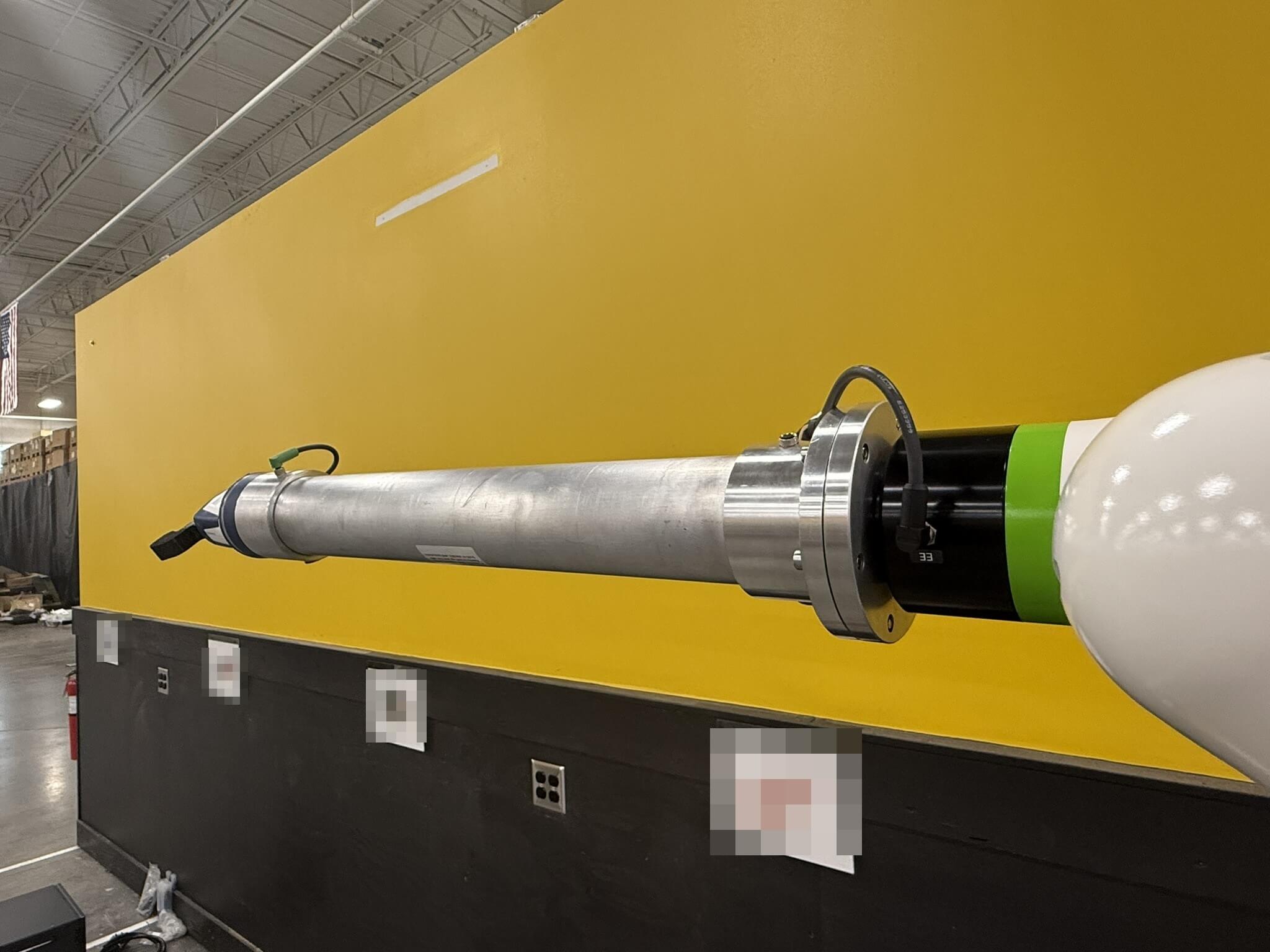

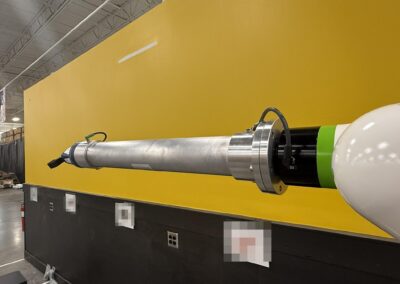

Cobot Reach Extenders
Lightweight, High Strength and High Vibration Damping mean cobot cell cycle time is reduced
Key Features & Performance
Plug 'n Play

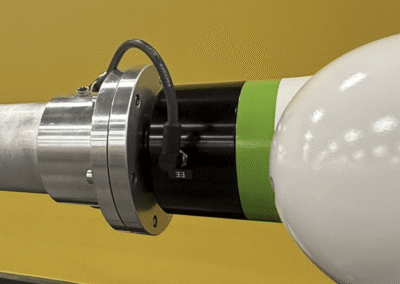

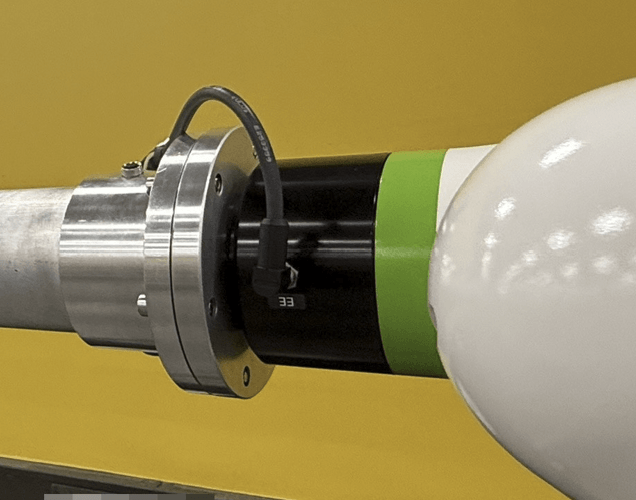

Mounting surface replicates the standard robot wrist including ISO-50 bolt pattern for seamless installation
Simple Connections
Use the same jumpers (electrical, pneumatic) which connect your tooling to the cobot
Utilities Protected
Cables and tubing are routed internally through the extender tube — fully protected and no binding risk
35% Lighter
Less weight than aluminum — preserving more of the J5 moment capacity for your EOAT payload. The extender itself uses only a small % of a typical cobot’s J5 moment capacity.
20–40% Less Deflection
High rigidity at extended reach maintains positional accuracy for part placement, inspection, and process automation.
50× Faster Vibration Damping
Dramatically shorter ring-down time versus aluminum enables faster cycle times and higher throughput.
[ PAYLOAD RETAINED ]
Online store information here to order various sizes
-
Diamond Standard Series OD:2.5 ID:2 Wall:0.25 Length: 1FT – 6FT
Price range: $638.14 through $2,734.88 -
Diamond Standard Series OD:3 ID:2.5 Wall:0.25 Length: 1FT – 6FT
Price range: $740.46 through $3,173.40 -
Diamond Standard Series OD:3.5 ID:3 Wall:0.25 Length: 1FT – 6FT
Price range: $853.40 through $3,657.41 -
Diamond Standard Series OD:1.5 ID:1 Wall:0.25 Length: 1FT – 6FT
Price range: $433.20 through $1,856.58 -
Diamond Standard Series OD:2 ID:1.5 Wall:0.25 Length: 1FT – 6FT
Price range: $517.65 through $2,218.49 -
Diamond Standard Series OD:4 ID:3.5 Wall:0.25 Length: 1FT – 6FT
Price range: $967.21 through $4,145.20 -
Diamond Standard Series OD:5 ID:4.5 Wall:0.25 Length: 1FT – 6FT
Price range: $1,267.72 through $5,433.10 -
Diamond Standard Series OD:6 ID:5.565 Wall:0.218 Length: 1FT – 6FT
Price range: $1,661.36 through $7,120.10 -
Silver Standard Series OD:1.25 ID:0.93 Wall:0.16 Length: 1FT – 6FT
Price range: $90.99 through $389.97 -
Silver Standard Series OD:1.375 ID:1.055 Wall:0.16 Length: 1FT – 6FT
Price range: $87.62 through $375.52 -
Silver Standard Series OD:1.375 ID:0.93 Wall:0.223 Length: 1FT – 6FT
Price range: $107.46 through $460.54 -
Silver Standard Series OD:1.5 ID:1.18 Wall:0.16 Length: 1FT – 6FT
Price range: $103.12 through $441.95 -
Silver Standard Series OD:1.5 ID:1.055 Wall:0.223 Length: 1FT – 6FT
Price range: $109.78 through $470.49 -
Silver Standard Series OD:1.625 ID:1.305 Wall:0.16 Length: 1FT – 6FT
Price range: $95.55 through $409.52 -
Silver Standard Series OD:1.625 ID:1.18 Wall:0.223 Length: 1FT – 6FT
Price range: $109.94 through $471.18 -
Silver Standard Series OD:1.875 ID:1.43 Wall:0.223 Length: 1FT – 6FT
Price range: $119.96 through $514.12 -
Silver Standard Series OD:2 ID:1.68 Wall:0.16 Length: 1FT – 6FT
Price range: $112.47 through $482.02 -
Silver Standard Series OD:1.75 ID:1.43 Wall:0.16 Length: 1FT – 6FT
Price range: $108.29 through $464.12 -
Silver Standard Series OD:1.75 ID:1.305 Wall:0.223 Length: 1FT – 6FT
Price range: $94.37 through $404.46 -
Silver Standard Series OD:1.875 ID:1.527 Wall:0.174 Length: 1FT – 6FT
Price range: $112.74 through $483.18 -
Silver Standard Series OD:2 ID:1.527 Wall:0.237 Length: 1FT – 6FT
Price range: $126.15 through $540.66 -
Silver Standard Series OD:2.25 ID:1.93 Wall:0.16 Length: 1FT – 6FT
Price range: $123.31 through $528.46 -
Silver Standard Series OD:2.25 ID:1.777 Wall:0.237 Length: 1FT – 6FT
Price range: $134.48 through $576.34 -
Silver Standard Series OD:2.5 ID:2.152 Wall:0.174 Length: 1FT – 6FT
Price range: $133.96 through $574.11
