[ LAMINATE WALL TUBING ]
Basic Structure Reimagined:
Reach further
Improve performance

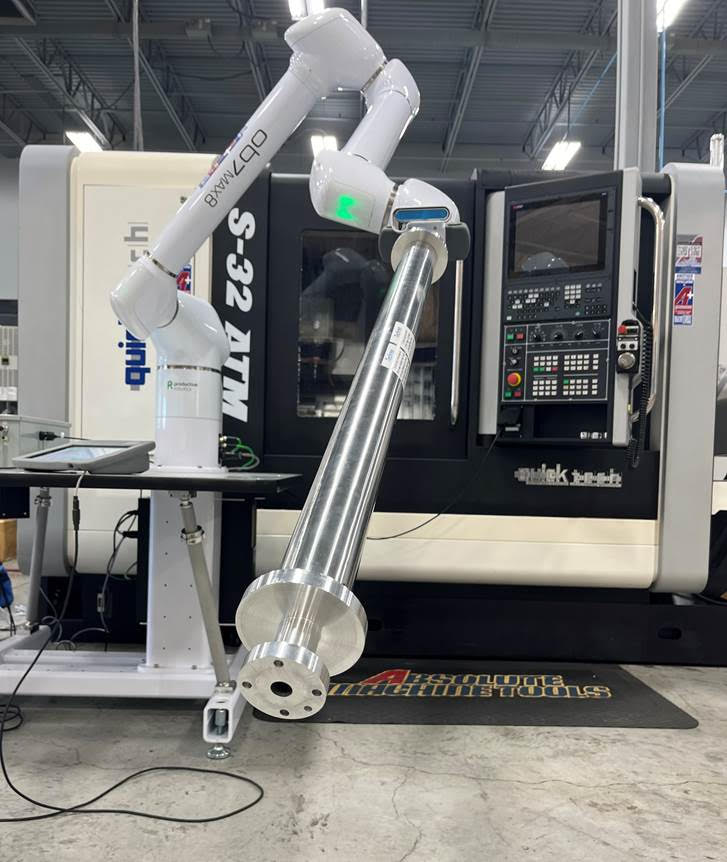

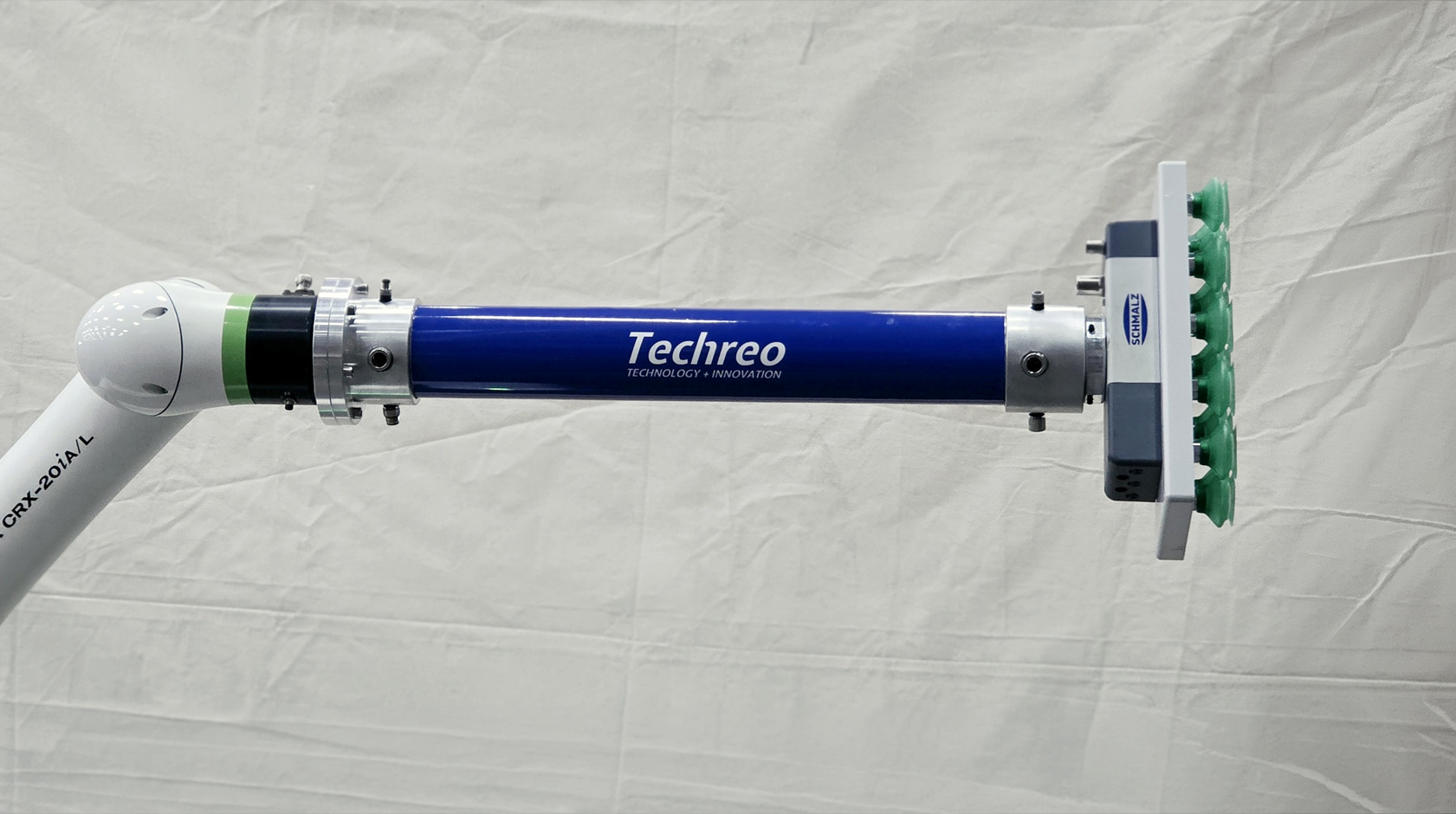

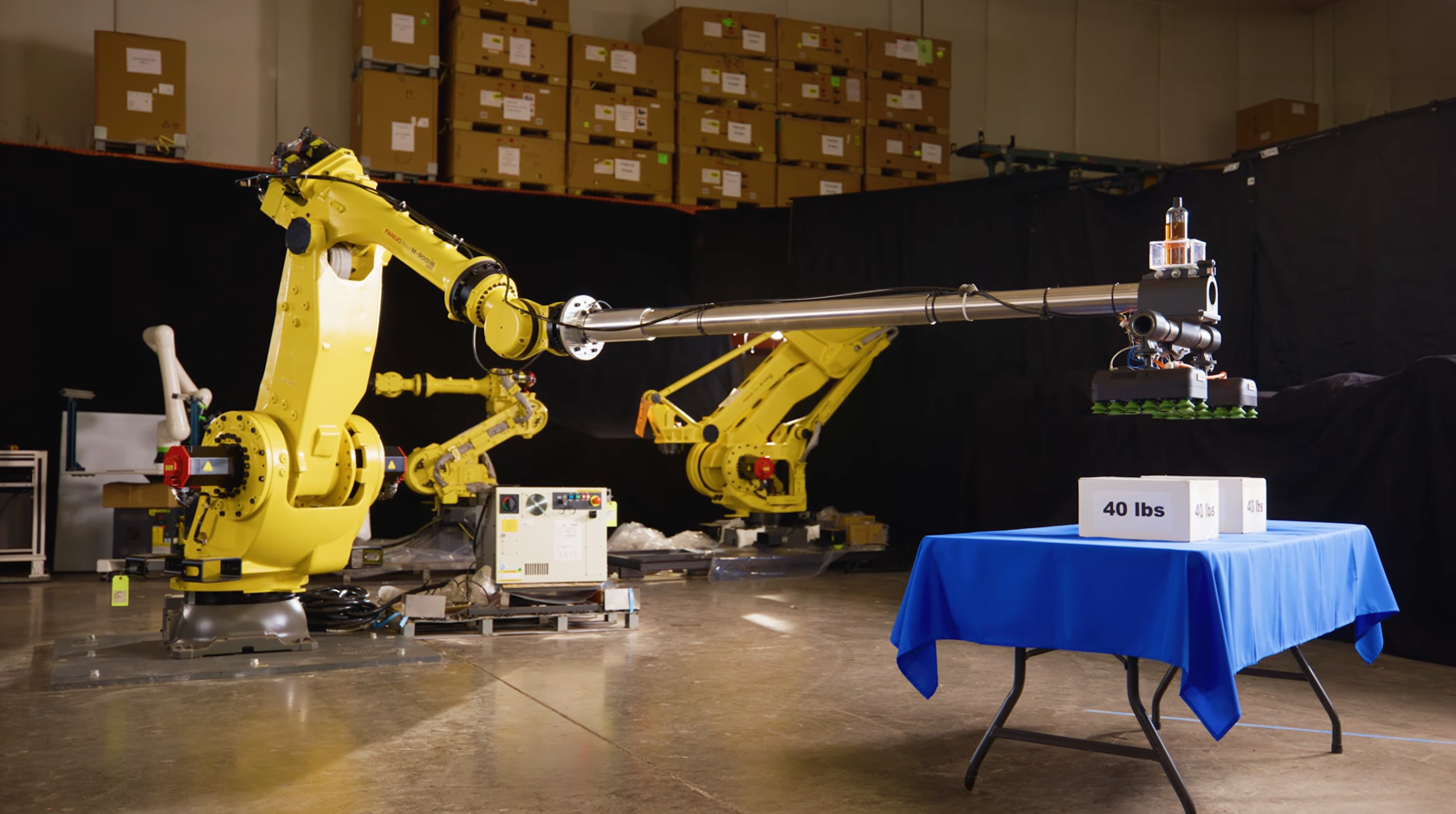

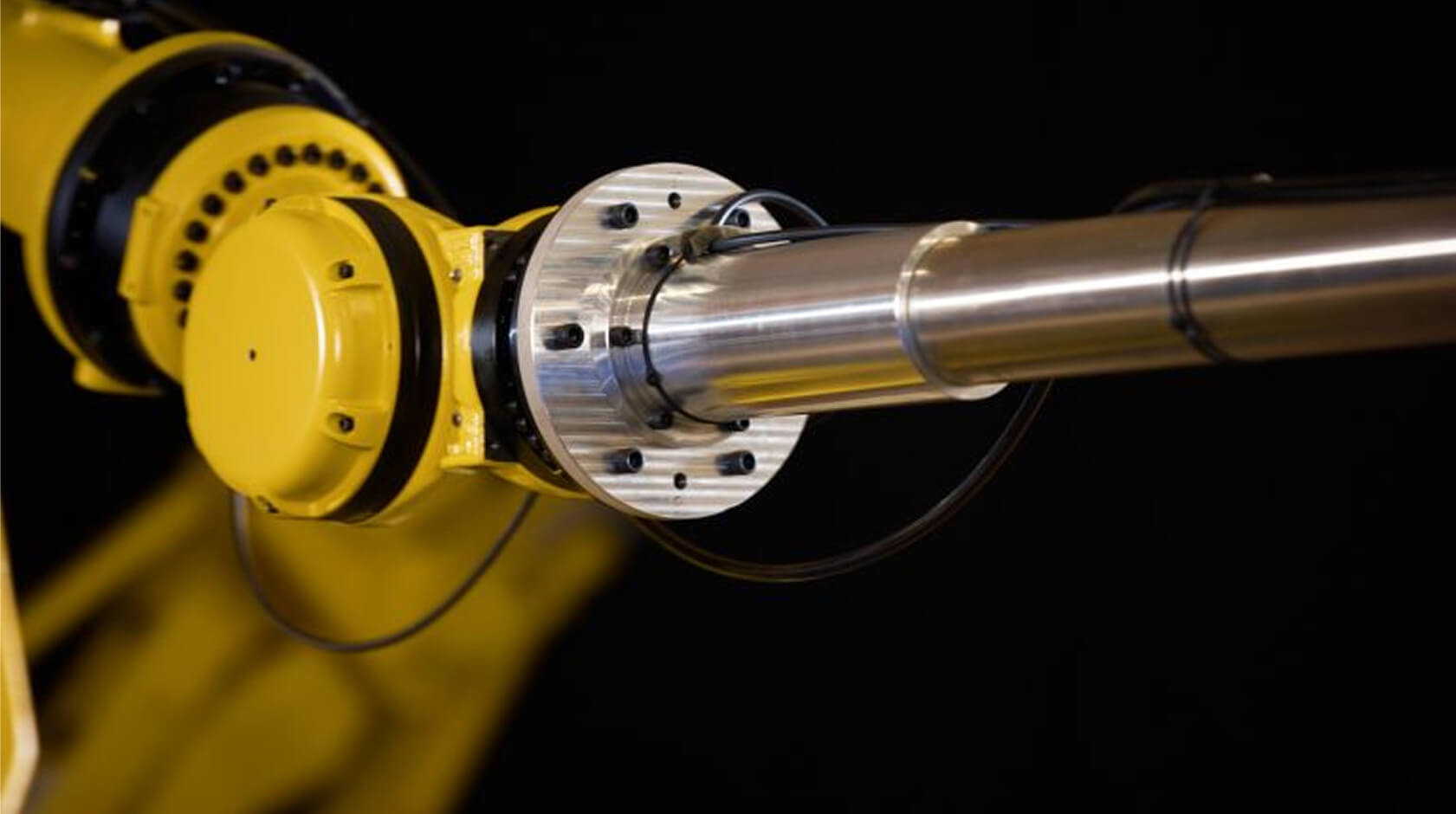

Precision-layered laminate tubing for robotic booms and EOAT — tuned for damping, weight and deflection.
[ ABOUT ]
Located in Cincinnati Ohio, Techreo has developed a novel, patented approach to robotic structures which enables us to custom-design each part’s mechanical properties to the customer’s needs. Precision winding and layering the right materials in the right sequence produces unique properties which exceed traditional options and improve accuracy, cycle times / throughput, and capacity.
[ THE TECHNOLOGY ]

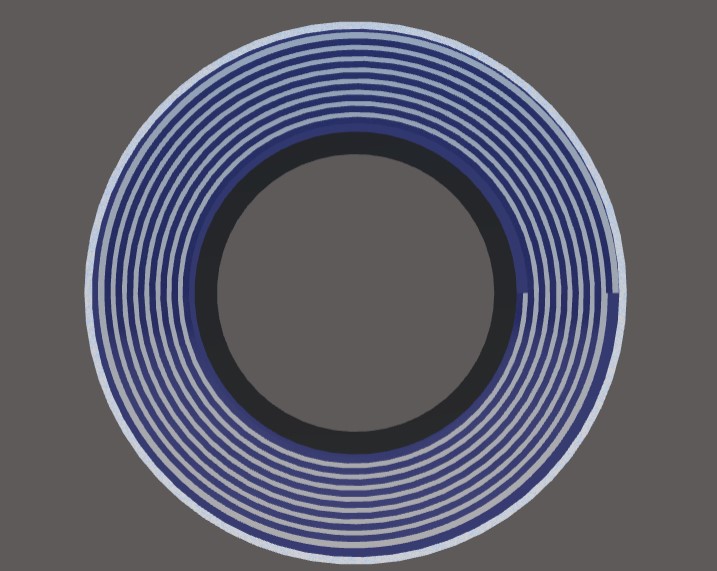

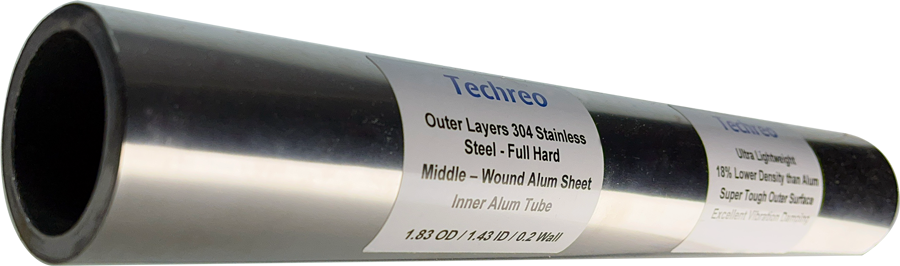

A tube wall engineered layer by layer to meet a customer’s performance targets.
Benefits
[ 01 ]
50×
Vibration damping
Up to 50X improvement in “ring down” time vs. aluminum
[ 02 ]
−35%

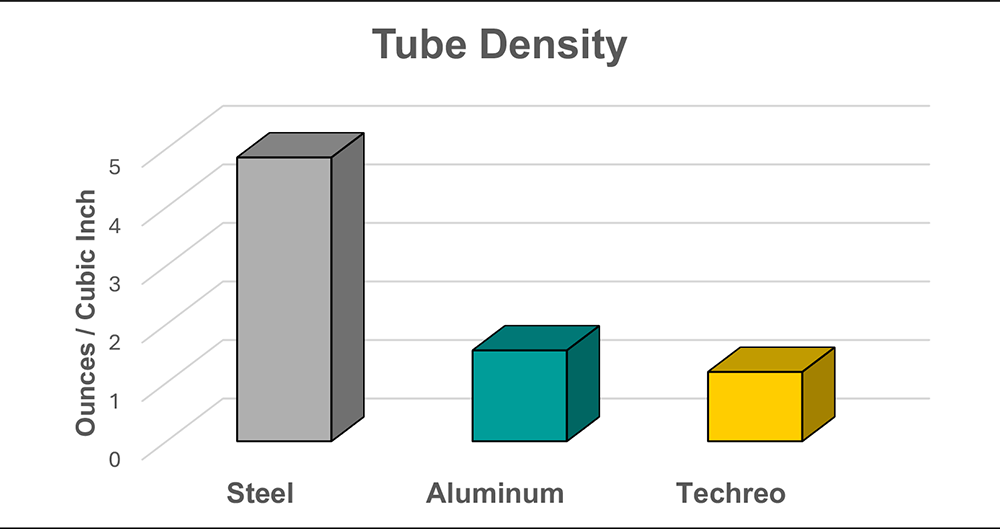

Lightweight design
~35% less weight than aluminum
[ 03 ]
20–40%
Deflection
20% to 40% less axial deflection than aluminum
Sizes
[ Outside Diameter ]
[ Length ]
[ ]
Min
25mm
(1.0 inch)
Max
225mm
(9 inches)
Nominal
Length
1.8m
(6 feet)
Via stepped tube configuration
6m
(20 feet)
Available in standard sizes or custom configurations

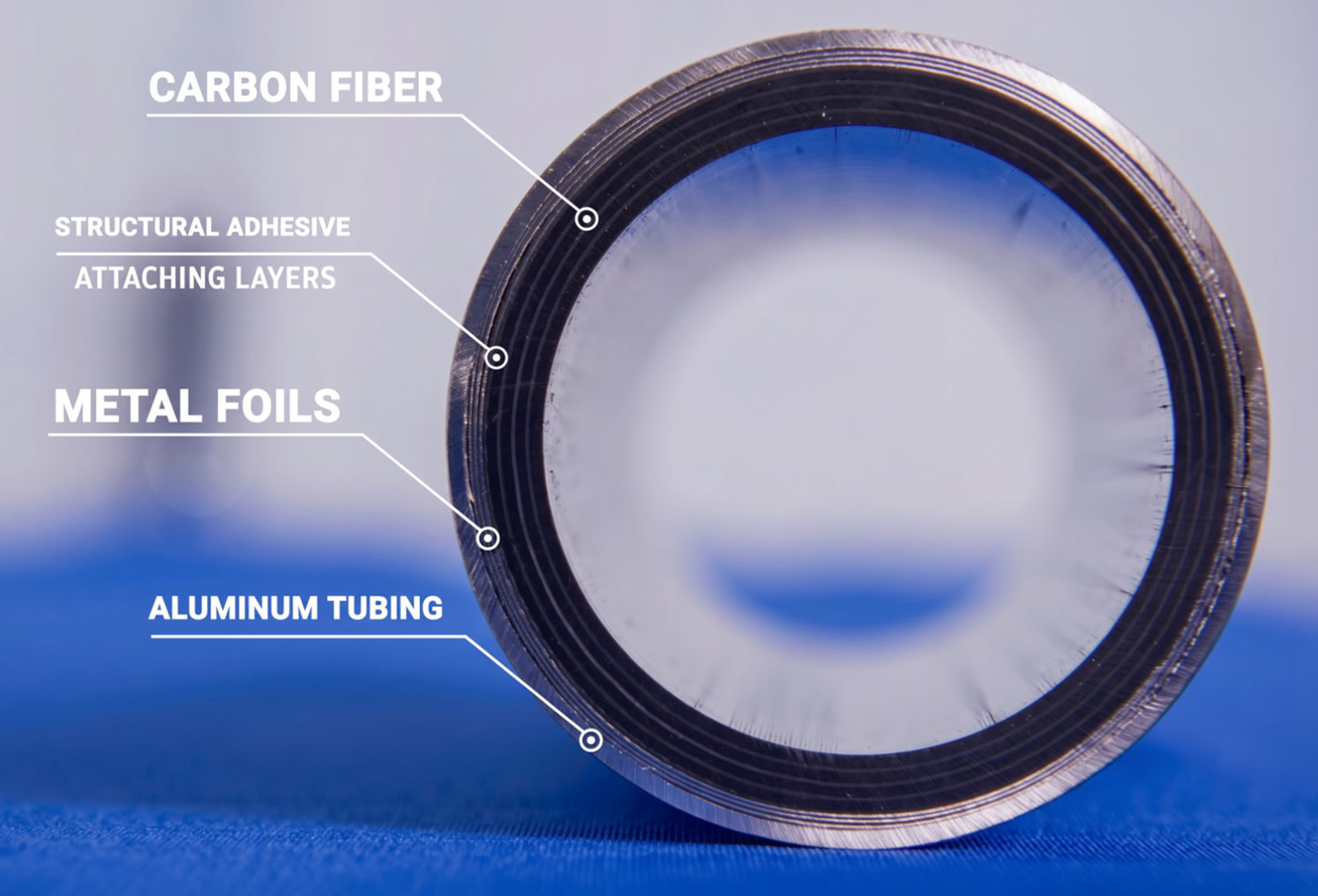

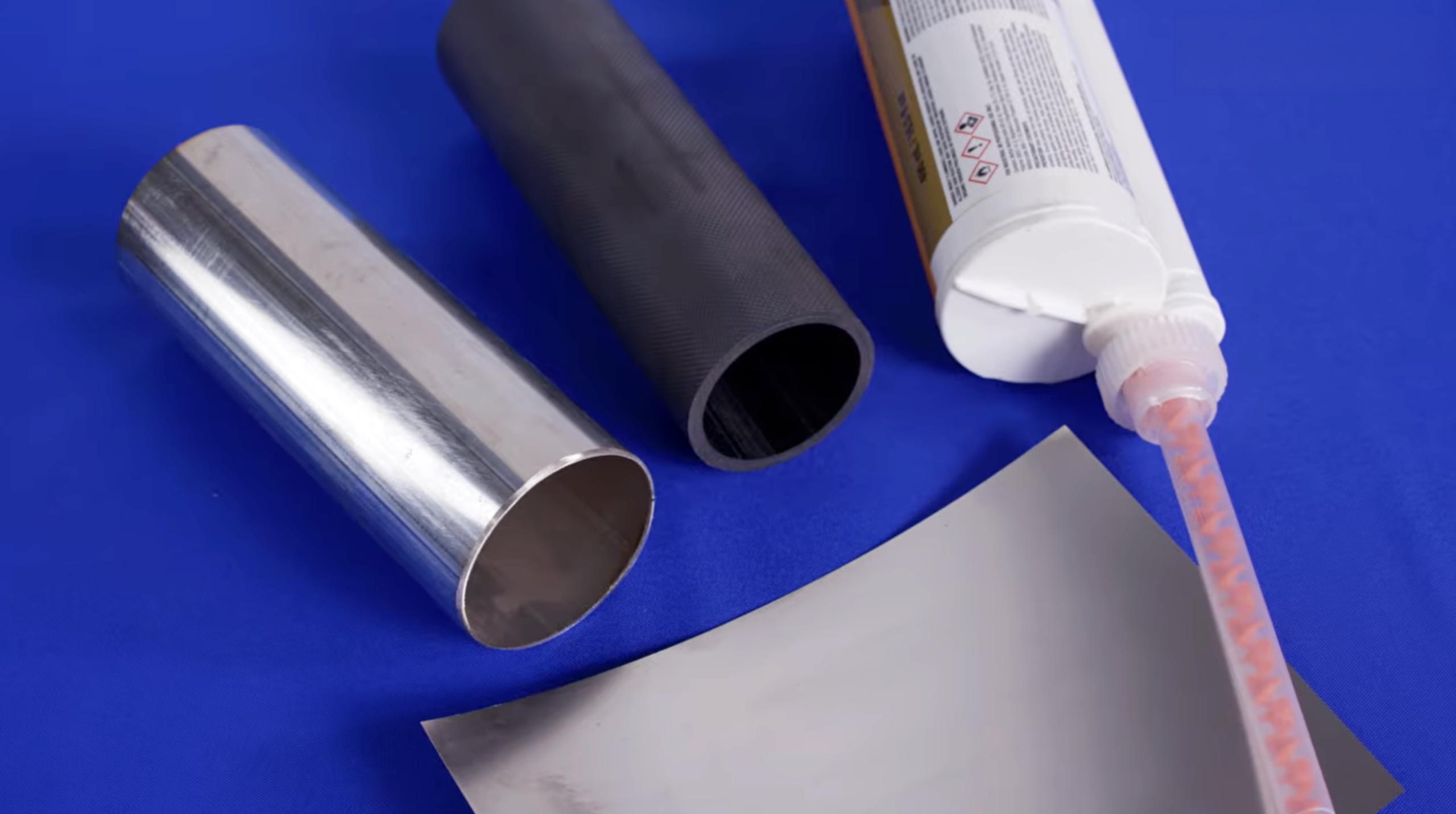

Materials
[ 01 ]
Thin wall sheet metal
(typically aluminum or stainless steel)
[ 02 ]
Commercial tubing
(typically aluminum or stainless steel)
[ 03 ]
Optional: Carbon Fiber
[ 04 ]
Structural Adhesive
Other “exotic” materials are available (copper, nickel-based alloys, etc)
Stainless - Carbon - Inconel®

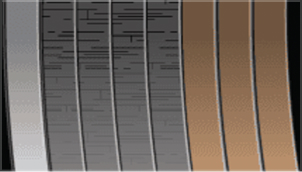

Stainless - Carbon - Copper
